EFI Fuel Line Routing
Below we have outlined the most common ways that a tyical EFI fuel system is ran.
EFI Fuel Line Routing Using Corvette LS9904 Filter / Regulator
The above diagram shows how to route your fuel lines when using a Corvette fuel filter / regulator part # LS9904. We also have a full line kit with all the necessary fittings part # LS-LINE-KIT. For a printable drawing click here.
EFI Fuel Line Routing Using an Adjustable Regulator Before the Fuel Rails
The above diagram shows how to route your fuel lines using an adjustable bypass regulator before the fuel lines. We also have a full line kit with all necessary fittings part # EFI-LINE-KIT. For a printable diagram click here.

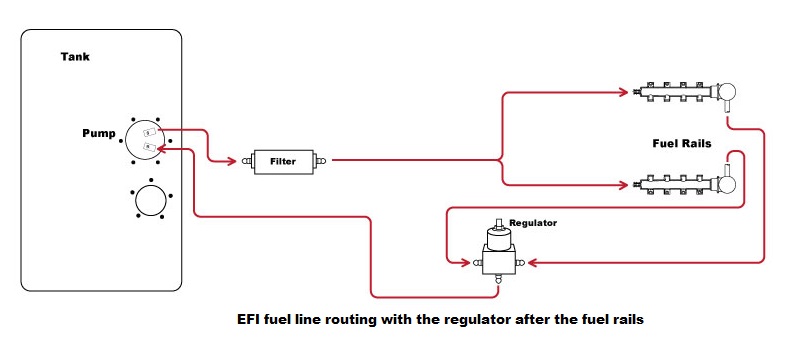

EFI Fuel Line Routing Using an Adjustable Regulator After the Fuel Rails
The above diagram shows how to route your fuel lines using an adjustable bypass regulator after the fuel lines with two lines coming from the rails to the regulator. For a printable diagram click here.

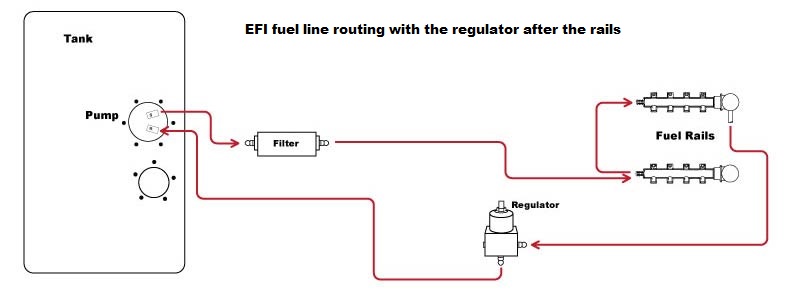

EFI Fuel Line Routing Using an Adjustable Regulator After the Fuel Rails
The above diagram shows how to route your fuel lines using an adjustable bypass regulator after the fuel lines with one line coming from the rails to the regulator. We also have a full line kit with all necessary fittings part # EFI-LINE-KIT. For a printable diagram click here.
